Extra Plat
Horological definition:
A CALIBRE EXTRA PLAT IS A MOVEMENT THAT HAS BEEN CONCEIVED WITH REDUCED THICKNESS IN MIND. WHILE THIS MIGHT SOUND LIKE A SIMPLE EXERCISE, IT REQUIRES A HIGH LEVEL OF CRAFTSMANSHIP AND EXPERIENCE TO ENSURE A STATE-OF-THE-ART PERFORMANCE AND RESISTANCE WHILE REMOVING ALL THE UNNECESSARY ELEMENTS.
Technical characteristics
YOUR DANIEL ROTH WATCH WAS MANUFACTURED AT LA FABRIQUE DU TEMPS LOUIS VUITTON IN SWITZERLAND.
IT IS POWERED BY THE MECHANICAL CALIBRE DR002.
THE PRINCIPAL CHARACTERISTICS ARE LISTED BELOW:
| Power reserve | Approximately 65 hours |
| Number of components | 143 |
| Frequency | 4Hz |
| Calibre thickness | 3,1mm |

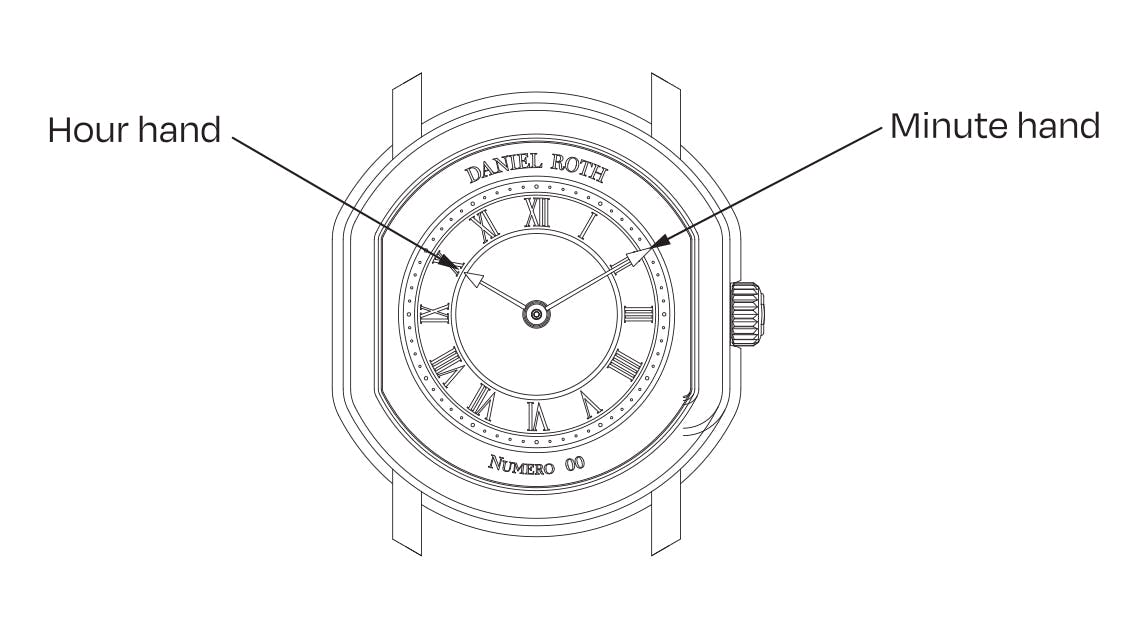

Reading the time
Manual winding

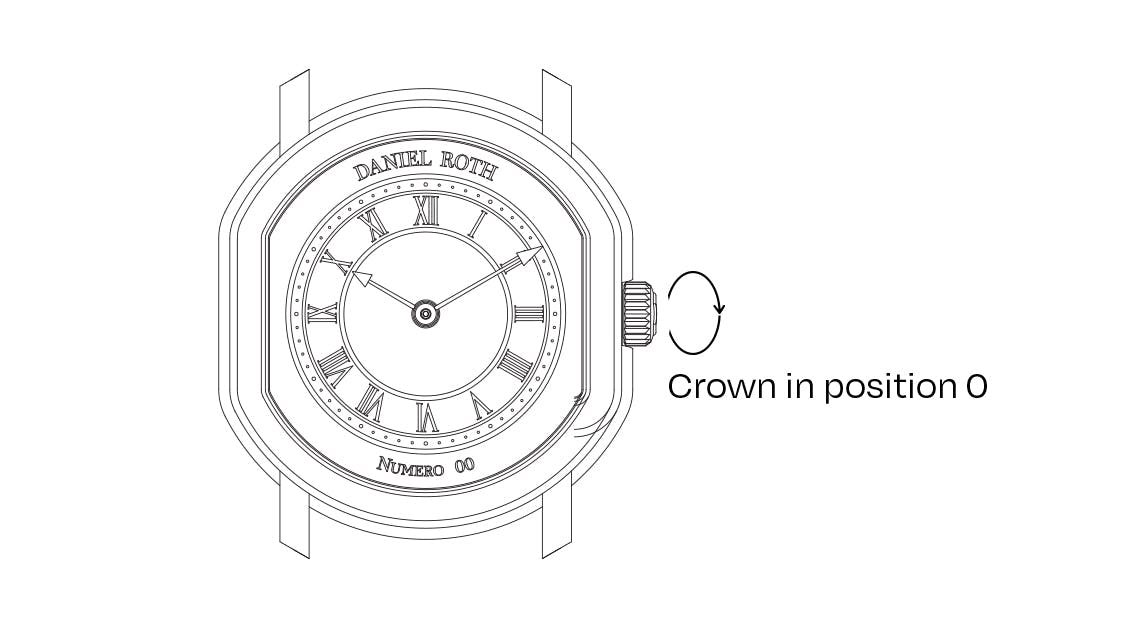

TO WIND YOUR WATCH, TURN THE CROWN LOCATED AT 3 O’CLOCK. BEGINNING AT POSITION 0, ROTATE THE CROWN CLOCKWISE APPROXIMATELY 30 TIMES (DO NOT USE EXCESSIVE FORCE, AND STOP WHEN YOU MEET RESISTANCE).
IF THE CROWN IS SCREWED DOWN, YOU MUST FIRST UNSCREW IT BEFORE TURNING IT CLOCKWISE TO WIND YOUR WATCH.
BE SURE TO SCREW IT BACK DOWN TO ITS INITIAL POSITION ONCE YOUR WATCH IS FULLY WOUND TO ENSURE WATER RESISTANCE.
Setting the time

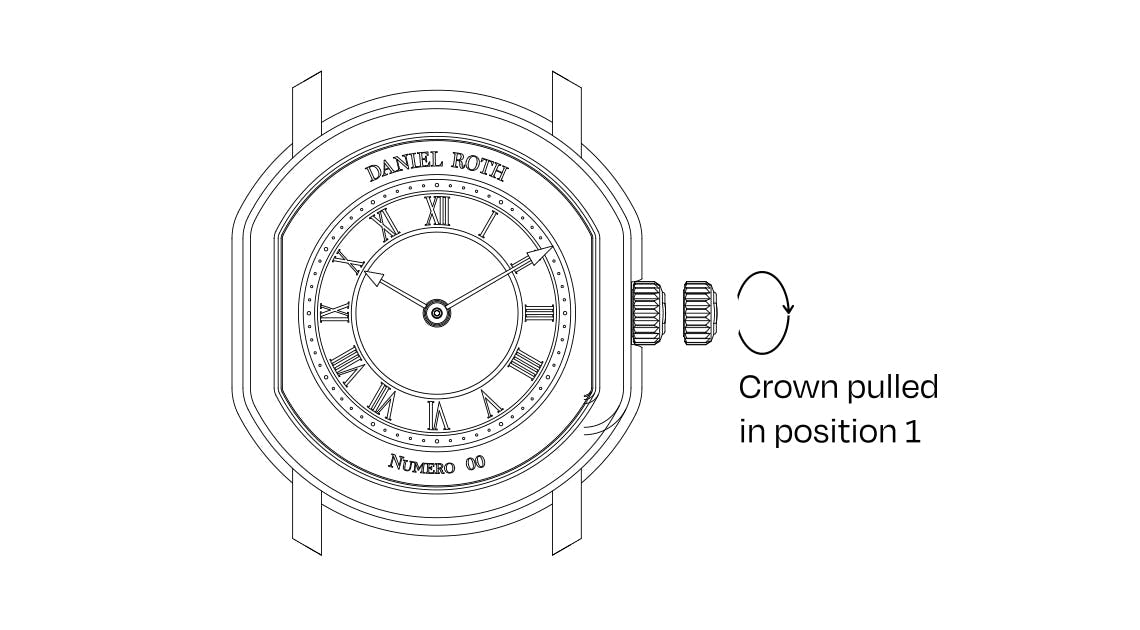

PULL OUT THE CROWN LOCATED AT 3 O’CLOCK FROM POSITION 0 TO POSITION 1.
TURN THE CROWN CLOCKWISE TO ADJUST THE HANDS UNTIL THE CORRECT TIME IS DISPLAYED.
ONCE THE TIME IS SET, PUSH THE CROWN BACK INTO ITS INITIAL POSITION.
IF THE CROWN IS SCREWED DOWN, YOU MUST FIRST UNSCREW IT BEFORE PULLING IT OUT TO POSITION 1 AND SETTING THE TIME.
BE SURE TO SCREW IT BACK DOWN TO ITS INITIAL POSITION ONCE THE TIME IS SET TO ENSURE WATER RESISTANCE.
CAUTION: NEVER SET THE TIME, ADJUST, OR PULL OUT THE CROWN(S) WHILE THE WATCH IS UNDERWATER.
